PSA OXYGEN GENERATOR
PSA oxygen plant plays a very important role in Medical, Glass, Fish & other Industry. Oxygen Gas can be generating through Pressure Swing Adsorption Technology. Oxygen Plant is designed to produce onsite Oxygen gas so that dependency of Oxygen cylinder can be free. This Plant is automatic and required no such approval to install in the Hospitals.

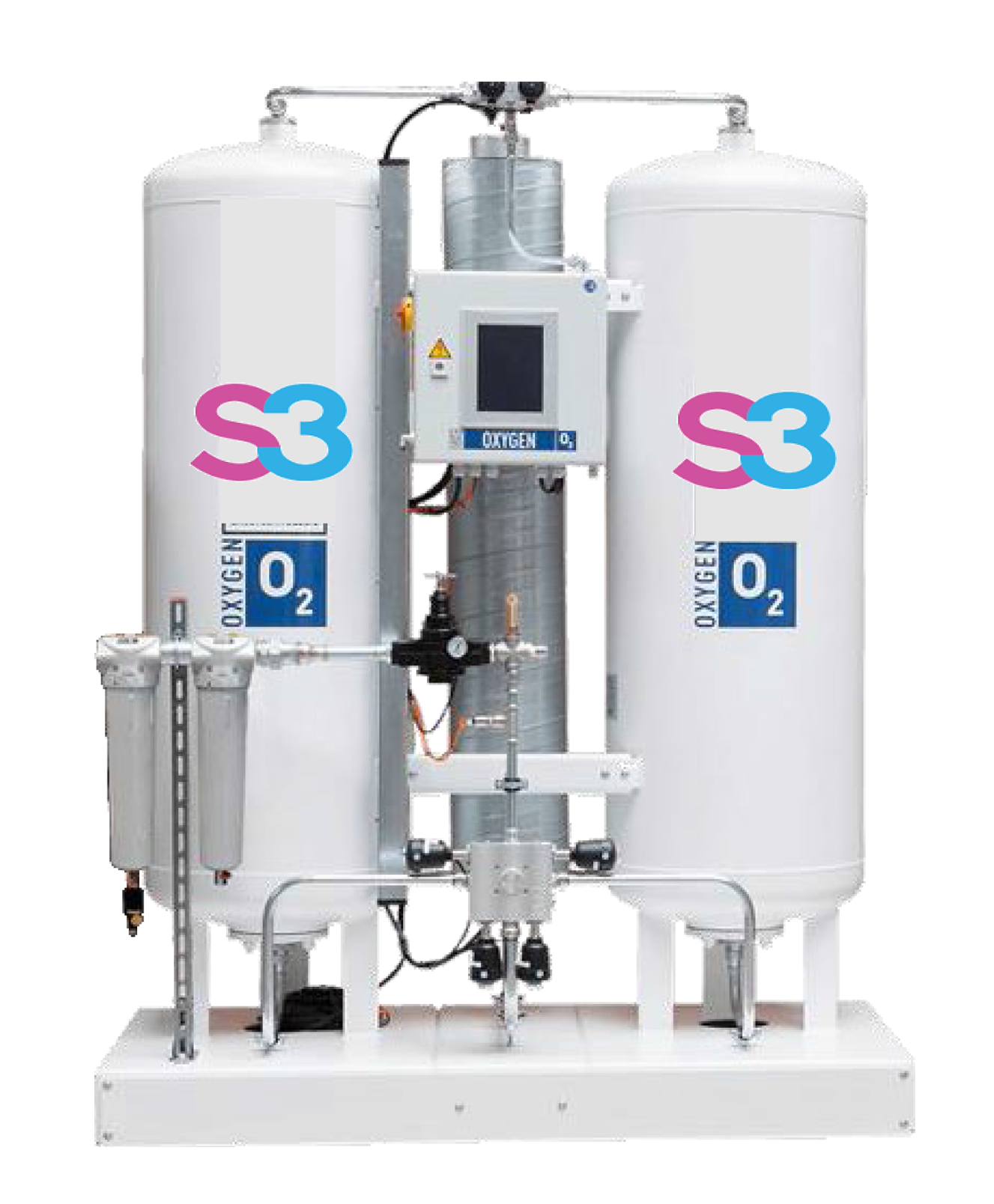

This process is consists of two adsorber towers filled with Zeolite Molecular Sieve (ZMS) & Activated Alumina. Clean compressed air at 30°C is passed through one adsorber tower and oxygen comes out as product gas.The exhaust gas (Nitrogen) is discharged back in to the atmosphere. Upon saturation of the ZMS tower the process switches oxygen generation to the other tower through change over valve allowing the saturated tower to undergo regeneration by depressurization and purging to atmospheric pressure. This process is continuous through PLC fitted in the control panel.
- On Site Generation or cylinder filling plants.

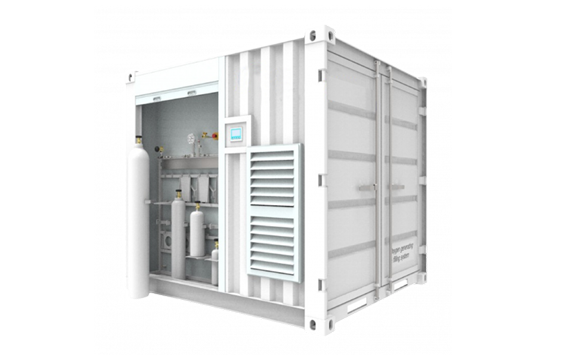

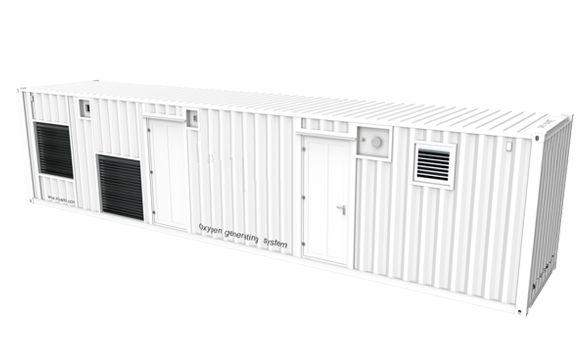

- Skid mounted or Containerized.
- Capacities range from 6 m3 -200 m3.
UHP PSA GENERATOR
Industrial Grade PSA Oxygen plants with ourity of 95%- On Site Generation or cylinder filling plants.
- Skid mounted or Containerized.
- Capacities range from 15 m3 -300 m3.
